Overview:

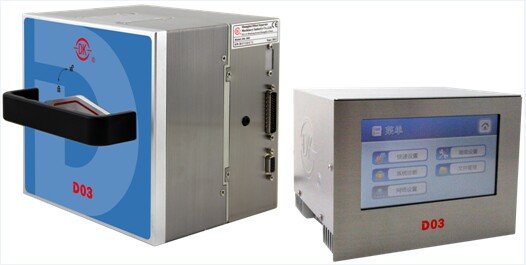

Multi-function thermal transfer overprinter with lower price can be used on a variety of plastic films, laminated plastic films and plastic, paper and other flexible packaging bags.
Using thermal printing ribbon to avoid oil contamination.
No drying time like oil printing machine, more clear and clean.
Easy to load and unload different die of letters.
Can be printed on PT, PE, KT, OPP, COP heat shrinkable label, aluminum foil, bags, paper and various plastic composite films and other materials.
Advanced design of structure, high quality and easy to maintain.
With multi-function thermal transfer overprinter with lower price for Vertical Packer, you can largely reduce the print cost, we depend on our D-SERIES TTO machines to popularize the use of TTO in the world and looking forward to your enquiry for futher details.
About Factory:
Shanghai DIKAI Coding Industry Co., Ltd was founded in Shanghai in 1995, DIKAI group has dedicated itself to innovation, development, manufacturing and sales of quality coding machines and consumables for 20 years. DK Thermal Transfer Overprinter, ink roll coding machine, hot stamping coding machine, carton coding machine apply variable data such as barcode, images, table, variable time, production date, batch No. and other information on plastic film, paper, etc. soft packaging materials, meeting the printing requirements from food, pharmacy, cosmetic, etc.
Till now, with over 20 national patents, DIKAI Group has been Chinese TOP 1 coding machine manufacturer with 21 branches all around China, occupying over 80% of Chinese Ink Roll Coder market.
In 2012, DIKAI successfully launched its first Thermal Transfer Overprinter-D01, broke the corner of Chinese TTO market and broadened the options for customers all over the world.
For the past 2 years, DIKAI fulfilled its TTO range products and now we have a series of TTO machines for your choice.
Please do not hesitate to contact us for more details.
Overview
Quick Details
Warranty:1 year
Packaging Material:Plastic
Packaging Type:Cartons
Type:Coding Machine
Condition:New
Automatic Grade:Automatic
Application:Industrial coding
Place of Origin:Shanghai, China (Mainland)
Brand Name:Dikai
Driven Type:Electric
Voltage:90-260 v
Dimension(L*W*H):180x156x166 mm
Weight:11 kgs
Certification:CE Certificate
After-sales Service Provided:Online support
Mode:Continuous
Print speed:Up to 450 mm per second
Print area:32 x 40 mm
Resolution:8 dots/mm
Print 1:real time clock & date
Print 2:lot number, line ID, etc
Print 3:Multiple variable user input fields
Print 4:Logos & fixed barcode
Print 5:serial number
Options:Bracket
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Corrugated carton
Port
Shanghai, China
Benefits
1 Excellent quality prints through the entire roll of ribbon
Avoiding fading and thus improving your company brand image and quality.
2 High rub resistance prints from new resin ribbon
3 Real-time digital printing
Giving you enhanced printer flexibility for now and your future
4 Highest printing capability
Including automatic best before dates, shift codes, time codes as well as the capability to print barcodes and logos
5 More print flexibility
Print however many lines you want, with whatever fonts you want.
Product Description
Features
More print flexibility Prints
However many lines you want, with whatever fonts you want
Real-time digital printing
Gives enhanced printer flexibility for now and future
Alarm function
When ribbon is low or empty to avoid poor quality prints and non-coded packs
No downtime
Real-time printing when changing printed dates/times or shift codes
Easy to change and setup jobs improve uptime & reduce errors
Date, time, best before dates, lot and batch codes, customer logo and other variable information
Memory stick database function
Memory capacity of up to 1,000 images
Up to 550 m maximum ribbon length
Increases the time between changes
Simple and easy to use user interface
Specifications
Print speed
· Up to 450 mm per second
Print area
· 32 mm x 150 mm
Resolution
· 8 dots/mm
· 1 mm gap between prints
Printing capability
· True type font
Real time clock (hours/minutes)
· Dates and auto updating best before dates
User entered alphanumeric data (lot number, line ID, etc.)
· Multiple variable user input fields
· Automatic shift code roll over
· Automatic serial number
· Logos, fixed barcodes and other imported bitmap images (with optional Promark Create Pro software)
User Interface
· Controller with 7 inch touch screen
Software
· Promark Create image design software
USB database function
· Allows the image to be selected from a database of up to 1,000 from the USB stick
Menu languages
· Arabic, Chinese, Dutch, English, French, German, Hebrew, Hungarian, Italian, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish
Options
· Bracket
|
Specifications |
|||||||
|
|
D01 Intermittent |
D01 Continuous |
D03 Intermittent |
D03 Continuous |
|||
|
Print Head |
32mm, 300dpi(12points/mm) |
32mm, 300dpi(12points/mm) |
|||||
|
Print Area |
32mm*80mm |
32mm*60mm |
32mm*80mm |
32mm*100mm |
|||
|
Print Speed |
≤ 30m/min |
≤ 36m/min |
|||||
|
Max Length of Ribbon |
500m |
||||||
|
Width of Ribbon |
22mm-33mm |
22mm-33mm |
|||||
|
Interface |
USB, RS232 |
||||||
|
Electricity Supply |
110-220V 50/60Hz |
||||||
|
Power |
200W |
200W |
|||||
|
|
0-40℃ |
||||||
|
Relative Humidity |
10%-95%(Non-condensing) |
||||||
|
Air Supply |
6bar/90psi(max), dry, clean |
||||||
|
Weight |
Print Unit:8.5KG, Controller Box:2.0KG |
Print Unit:9.5KG, Controller Box:2.0KG |
|||||
|
Dimension(L*W*H) |
Print Unit: |
Controller Box |
Print Unit: |
Controller Box |
|||
